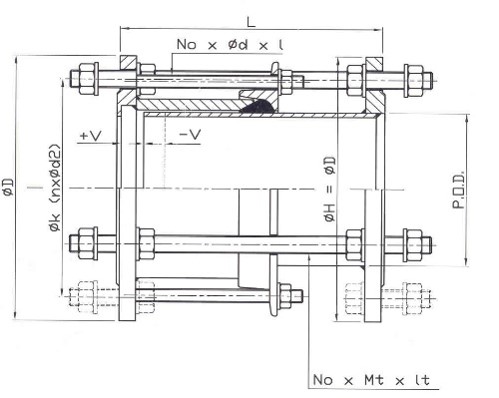

Hegawa Demontageverbindingen, type HD 1

Dubbele flensfittingen die lengteverstelling mogelijk maken in flensleidingsystemen

Hegawa Demontageverbindingen, type HD 1

Complete with flanges drilled acc. to PN 10 / 16 raised faced with reduced bore, EPDM gaskets, stud bolts and nuts galvanized
Available from DN 50 mm up to including DN 1600 mm.
Tie rods and nuts (50 % of number flange holes) galvanized
All metal parts epoxy coated (blue coloured-RAL 5015), 200 microns
Suitable for simplifying the installation and removal of all kind of valves, pumps and flanged pipes and fittings
Typical applications include pumping stations, water treatment works, sewage treatment works, plant rooms, meter chambers, power generation equipment and gas distribution stations
Flanges can be drilled to suit various international standards like ISO, DIN, BS and ANSI for pressure classes PN 10, PN 16, PN 25 and PN 40

Hegawa Demontageverbindingen, type HD 1, PN10 + PN16

De Hegawa-flensverbindingen met beperkte demontage zijn dubbelgeflensde fittingen die lengteaanpassing in flensleidingsystemen mogelijk maken. Ze zijn ontwikkeld om meer flexibiliteit te bieden tijdens de planning en installatie van flensleidingsystemen en ook voor later onderhoud.

Wissen 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200 Nominale maat Ontmantelingsverbinding PN16 Ontmanteling van verbinding PN10	Wissen Flensboren PN10 PN10/16 PN16	Wissen 180 200 220 230 250 260 270 280 300 320 340 360 Nom. Lengte +25 / -25	Wissen 4 x M16 x 330 4 x M16 x 340 4 x M20 x 350 4 x M20 x 370 4 x M20 x 390 4 x M20 x 400 4 x M24 x 380 4 x M24 x 400 4 x M24 x 410 4 x M24 x 420 4 x M27 x 430 5 x M24 x 435 5 x M24 x 440 5 x M27 x 450 5 x M27 x 460 5 x M30 x 460 5 x M33 x 500 6 x M27 x 480 6 x M30 x 500 7 x M30 x 500 7 x M33 x 545 8 x M33 x 560 8 x M36 x 580 Bouten M33 x 500 M36 x 530 M39 x 570 M45 x 620	Wissen HD.1.0050.E.G.PN10 HD.1.0050.E.G.PN16 HD.1.0060.E.G.PN10 HD.1.0060.E.G.PN16 HD.1.0080.E.G.PN10 HD.1.0080.E.G.PN16 HD.1.0100.E.G.PN10 HD.1.0100.E.G.PN16 HD.1.0125.E.G.PN10 HD.1.0125.E.G.PN16 HD.1.0150.E.G.PN10 HD.1.0150.E.G.PN16 HD.1.0250.E.G.PN10 HD.1.0250.E.G.PN16 HD.1.0300.E.G.PN10 HD.1.0300.E.G.PN16 HD.1.0350.E.G.PN10 HD.1.0350.E.G.PN16 HD.1.0400.E.G.PN10 HD.1.0400.E.G.PN16 HD.1.0450.E.G.PN10 HD.1.0450.E.G.PN16 HD.1.0500.E.G.PN10 HD.1.0500.E.G.PN16 HD.1.0600.E.G.PN10 HD.1.0600.E.G.PN16 HD.1.0700.E.G.PN10 HD.1.0700.E.G.PN16 HD.1.0800.E.G.PN10 HD.1.0800.E.G.PN16 HD.1.0900.E.G.PN10 HD.1.0900.E.G.PN16 HD.1.1000.E.G.PN10 HD.1.1000.E.G.PN16 HD.1.1100.E.G.PN10 HD.1.1100.E.G.PN16 HD.1.1200.E.G.PN10 HD.1.1200.E.G.PN16 Productcode Hegawa	Wissen 8 10 14 16 17 24 32 46 48 58 62 80 85 96 106 115 125 175 195 235 260 325 350 490 570 Gewicht kg
Nominale maat	Flensboren	Nom. Lengte +25 / -25	Bouten	Productcode Hegawa	Gewicht kg
Ontmanteling van verbinding PN10
50	PN10/16	180	4 x M16 x 330	HD.1.0050.E.G.PN10	8
65	PN10/16	180	4 x M16 x 330	HD.1.0060.E.G.PN10	10
80	PN10/16	200	4 x M16 x 340	HD.1.0080.E.G.PN10	14
100	PN10/16	200	4 x M16 x 340	HD.1.0100.E.G.PN10	16
125	PN10/16	200	4 x M16 x 340	HD.1.0125.E.G.PN10	17
150	PN10/16	200	4 x M16 x 340	HD.1.0150.E.G.PN10	24
200	PN10	220	4 x M20 x 350	HD.1.0100.E.G.PN10	32
250	PN10	230	4 x M20 x 370	HD.1.0250.E.G.PN10	46
300	PN10	230	4 x M20 x 390	HD.1.0300.E.G.PN10	58
350	PN10	250	4 x M20 x 400	HD.1.0350.E.G.PN10	80
400	PN10	260	4 x M24 x 420	HD.1.0400.E.G.PN10	96
450	PN10	270	5 x M24 x 435	HD.1.0450.E.G.PN10	115
500	PN10	280	5 x M24 x 440	HD.1.0500.E.G.PN10	125
600	PN10	300	5 x M27 x 460	HD.1.0600.E.G.PN10	175
700	PN10	300	6 x M27 x 480	HD.1.0700.E.G.PN10	195
800	PN10	320	6 x M30 x 500	HD.1.0800.E.G.PN10	260
900	PN10	320	7 x M30 x 500	HD.1.0900.E.G.PN10	325
1000	PN10	340	7 x M33 x 545	HD.1.1000.E.G.PN10	350
1100	PN10	340	8 x M33 x 560	HD.1.1100.E.G.PN10	490
1200	PN10	360	8 x M36 x 580	HD.1.1200.E.G.PN10	570
Ontmantelingsverbinding PN16
50	PN10/16	180	4 x M16 x 330	HD.1.0050.E.G.PN16	8
65	PN10/16	180	4 x M16 x 330	HD.1.0060.E.G.PN16	10
80	PN10/16	200	4 x M16 x 340	HD.1.0080.E.G.PN16	14
100	PN10/16	200	4 x M16 x 340	HD.1.0100.E.G.PN16	16
125	PN10/16	200	4 x M16 x 340	HD.1.0125.E.G.PN16	17
150	PN10/16	200	4 x M16 x 340	HD.1.0150.E.G.PN16	24
200	PN16	220	4 x M20 x 350	HD.1.0100.E.G.PN16	32
250	PN16	230	4 x M24 x 380	HD.1.0250.E.G.PN16	48
300	PN16	230	4 x M24 x 400	HD.1.0300.E.G.PN16	62
350	PN16	250	4 x M24 x 410	HD.1.0350.E.G.PN16	85
400	PN16	260	4 x M27 x 430	HD.1.0400.E.G.PN16	106
450	PN16	270	5 x M27 x 450	HD.1.0450.E.G.PN16	125
500	PN16	280	5 x M30 x 460	HD.1.0500.E.G.PN16	175
600	PN16	300	5 x M33 x 500	HD.1.0600.E.G.PN16	235
700	PN16	300	M33 x 500	HD.1.0700.E.G.PN16
800	PN16	320	M33 x 500	HD.1.0800.E.G.PN16
900	PN16	320	M36 x 530	HD.1.0900.E.G.PN16
1000	PN16	340	M39 x 570	HD.1.1000.E.G.PN16
1100	PN16	340	M39 x 570	HD.1.1100.E.G.PN16
1200	PN16	360	M45 x 620	HD.1.1200.E.G.PN16
