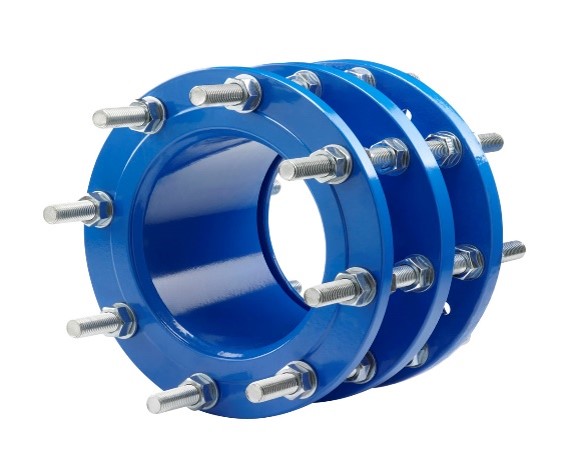

Hegawa Demontageverbindingen, type HD 2

Dubbele flensfittingen die lengteverstelling mogelijk maken in flensleidingsystemen

Hegawa Demontageverbindingen, type HD 2

Complete with flanges drilled acc. to PN 10 / 16 raised faced with reduced bore, EPDM gaskets, stud bolts and nuts galvanized
Available from DN 50 mm up to including DN 1600 mm.
Tie rods and nuts (50 % of number flange holes) galvanized
All metal parts epoxy coated (blue coloured-RAL 5015), 200 microns
Suitable for simplifying the installation and removal of all kind of valves, pumps and flanged pipes and fittings
Typical applications include pumping stations, water treatment works, sewage treatment works, plant rooms, meter chambers, power generation equipment and gas distribution stations
Flanges can be drilled to suit various international standards like ISO, DIN, BS and ANSI for pressure classes PN 10, PN 16, PN 25 and PN 40

Ontdek

Hegawa Demontageverbindingen, type HD 2, PN10+PN16

De Hegawa-flensverbindingen met beperkte demontage zijn dubbelgeflensde fittingen die lengteaanpassing in flensleidingsystemen mogelijk maken. Ze zijn ontwikkeld om meer flexibiliteit te bieden tijdens de planning en installatie van flensleidingsystemen en ook voor later onderhoud.

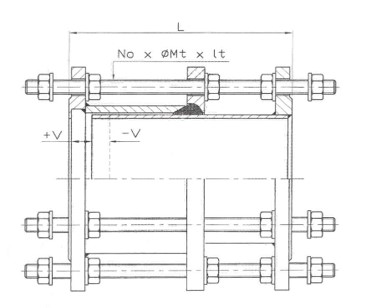

Nominale maat Wissen 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200 Demontage van de PN16-verbinding Demontage van koppeling PN10	Flensboren Wissen PN10 PN10/16 PN16	Nom. L. mm +25 / -25 Wissen 180 200 220 230 250 260 270 280 290 300 310 320 340 360	Bouten Wissen 4 x M16 x 310 8 x M16 x 330 8 x M20 x 340 8 x M20 x 350 12 x M20 x 370 12 x M20 x 390 12 x M24 x 380 12 x M24 x 400 12x M20 x 350 16 x M20 x 380 16 x M24 x 400 16 x M24 x 410 16 x M27 x 420 20 x M24 x 420 20 x M24 x 430 20 x M27 x 440 20 x M30 x 460 20 x M33 x 490 24 x M27 x 450 24 x M30 x 480 24 x M33 x 500 24 x M36 x 530 28 x M30 x 480 28 x M33 x 500 28 x M36 x 530 28 x M39 x 570 32 x M33 x 530 32 x M36 x 545 32 x M39 x 570 32 x M45 x 620	Productcode Hegawa Wissen HD.2.0050.E.G.PN10 HD.2.0050.E.G.PN16 HD.2.0060.E.G.PN10 HD.2.0060.E.G.PN16 HD.2.0080.E.G.PN10 HD.2.0080.E.G.PN16 HD.2.0100.E.G.PN10 HD.2.0100.E.G.PN16 HD.2.0125.E.G.PN10 HD.2.0125.E.G.PN16 HD.2.0150.E.G.PN10 HD.2.0150.E.G.PN16 HD.2.0250.E.G.PN10 HD.2.0250.E.G.PN16 HD.2.0300.E.G.PN10 HD.2.0300.E.G.PN16 HD.2.0350.E.G.PN10 HD.2.0350.E.G.PN16 HD.2.0400.E.G.PN10 HD.2.0400.E.G.PN16 HD.2.0450.E.G.PN10 HD.2.0450.E.G.PN16 HD.2.0500.E.G.PN10 HD.2.0500.E.G.PN16 HD.2.0600.E.G.PN10 HD.2.0600.E.G.PN16 HD.2.0700.E.G.PN10 HD.2.0700.E.G.PN16 HD.2.0800.E.G.PN10 HD.2.0800.E.G.PN16 HD.2.0900.E.G.PN10 HD.2.0900.E.G.PN16 HD.2.1000.E.G.PN10 HD.2.1000.E.G.PN16 HD.2.1100.E.G.PN10 HD.2.1100.E.G.PN16 HD.2.1200.E.G.PN10 HD.2.1200.E.G.PN16	Gewicht kg Wissen 8 12 16 19 20 29 37 41 51 58 63 70 83 93 100 120 125 132 150 185 200 226 279 280 305 375 385 425 460 580 600 651 700 860
Demontage van koppeling PN10
50	PN10/16	180	4 x M16 x 310	HD.2.0050.E.G.PN10	8
65	PN10/16	180	4 x M16 x 310	HD.2.0060.E.G.PN10	12
80	PN10/16	200	8 x M16 x 330	HD.2.0080.E.G.PN10	16
100	PN10/16	200	8 x M16 x 330	HD.2.0100.E.G.PN10	19
125	PN10/16	200	8 x M16 x 330	HD.2.0125.E.G.PN10	20
150	PN10/16	200	8 x M20 x 340	HD.2.0150.E.G.PN10	29
200	PN10	220	8 x M20 x 350	HD.2.0100.E.G.PN10	37
250	PN10	230	12 x M20 x 370	HD.2.0250.E.G.PN10	51
300	PN10	230	12 x M20 x 390	HD.2.0300.E.G.PN10	63
350	PN10	230	16 x M20 x 380	HD.2.0350.E.G.PN10	83
400	PN10	230	16 x M24 x 400	HD.2.0400.E.G.PN10	100
450	PN10	250	20 x M24 x 420	HD.2.0450.E.G.PN10	125
500	PN10	260	20 x M24 x 430	HD.2.0500.E.G.PN10	132
600	PN10	260	20 x M27 x 440	HD.2.0600.E.G.PN10	185
700	PN10	260	24 x M27 x 450	HD.2.0700.E.G.PN10	226
800	PN10	290	24 x M30 x 480	HD.2.0800.E.G.PN10	305
900	PN10	290	28 x M30 x 480	HD.2.0900.E.G.PN10	375
1000	PN10	290	28 x M33 x 500	HD.2.1000.E.G.PN10	425
1100	PN10	310	32 x M33 x 530	HD.2.1100.E.G.PN10	600
1200	PN10	320	32 x M36 x 545	HD.2.1200.E.G.PN10	651
Demontage van de PN16-verbinding
50	PN10/16	180	4 x M16 x 310	HD.2.0050.E.G.PN16	8
65	PN10/16	180	4 x M16 x 310	HD.2.0060.E.G.PN16	12
80	PN10/16	200	8 x M16 x 330	HD.2.0080.E.G.PN16	16
100	PN10/16	200	8 x M16 x 330	HD.2.0100.E.G.PN16	19
125	PN10/16	200	8 x M16 x 330	HD.2.0125.E.G.PN16	20
150	PN10/16	200	8 x M20 x 340	HD.2.0150.E.G.PN16	29
200	PN16	220	12x M20 x 350	HD.2.0100.E.G.PN16	41
250	PN16	230	12 x M24 x 380	HD.2.0250.E.G.PN16	58
300	PN16	230	12 x M24 x 400	HD.2.0300.E.G.PN16	70
350	PN16	260	16 x M24 x 410	HD.2.0350.E.G.PN16	93
400	PN16	260	16 x M27 x 420	HD.2.0400.E.G.PN16	120
450	PN16	270	20 x M27 x 440	HD.2.0450.E.G.PN16	150
500	PN16	280	20 x M30 x 460	HD.2.0500.E.G.PN16	200
600	PN16	300	20 x M33 x 490	HD.2.0600.E.G.PN16	279
700	PN16	300	24 x M33 x 500	HD.2.0700.E.G.PN16	280
800	PN16	320	24 x M36 x 530	HD.2.0800.E.G.PN16	385
900	PN16	320	28 x M36 x 530	HD.2.0900.E.G.PN16	460
1000	PN16	340	28 x M39 x 570	HD.2.1000.E.G.PN16	580
1100	PN16	340	32 x M39 x 570	HD.2.1100.E.G.PN16	700
1200	PN16	360	32 x M45 x 620	HD.2.1200.E.G.PN16	860
